Multi Quick 106 Specifications - Metric
Application Examples: Injection Molding, Blow Molding, Stamping, Punching, Milling and Drilling
  • Trademark Multi Quick
  • Stepless vertically and horizontally adjustable
  • Strong clamping pressure for small clamping torque
  • Greater stepless adjustment due to the integrated sliding plate
  • Material: Hardened alloy steel
  • Clamping Arm & Clamping Shoe: Drop forged
Clamping Force: Up to 60 kN

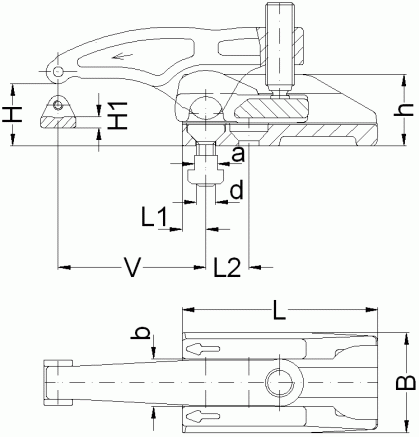

*** MQ106 ***     *** MQ106 SPECS ***
*even greater stepless horizontal
adjustment due to elongated
slot in clamping shoe
H Bolt Size
(d)		 T-Slot Size
(a)		 Part Number
(w/o fixing set)		 V L L1 L2 B b h H1 kN
10-58 Up to

12mm

 Please
Contact Us		 106-058-13 14-84 96 14 16 50 18 47 5 30
15-75 106-075-13 14-114 136 26 32
12-65 Up to

16mm

 106-065-17 17-97 111 17 18 60 21 54 6 40
16-90 106-090-17 17-137 156 28 43
18-102 Up to

20mm

 106-102-21 21-160> 181 21 36 72 25 62 7 50
15-115 Up to

24mm

 106-115-25 24-184 211 24 43 88 33 72 8 60
15-115 Up to

30mm

 106-115-31 29-189 211 25 40 88 42 72 8 60
Other sizes available



Spare Parts - Metric
*** CLAMPING SHOE *** *** CLAMPING ARM *** *** SPRING WITH SCREW ***
↑		 *** BALL PRESSURE SCREW ***
↑		 *** ALLEN KEY ***
↑
↑ *** COUNTERSUNK SCREW ***
↑		 *** T-NUT ***
↑		 *** PROFILE NUT ***
↑		 ↑ *** PROTECTION PLATE ***
↑
Clamping Shoe Countersunk
Screw		 T-Nut Profile Nut Clamping Arm
with Sliding Plate		 Protection Plate Spring
with Screw		 Ball Pressure
Screw		 Allen Key
Part No. Part No. Part No. Part No. Part No. Part No. Part No. Part No. Part No.
106-2-096-13 Up to

12mm

 Please
Contact Us		 200-6-024-13 220-5-038-13 991-150-12-1 360-100-113 310-16-055 610-08
106-2-136-13 220-5-057-13 310-16-060
106-2-111-17 Up to

16mm

 220-6-030-17 220-5-043-17 991-150-16-1 360-100-117 310-20-060 610-10
106-2-156-17 220-5-068-17 310-20-070
106-2-181-21 Up to

20mm

 220-6-038-21 220-5-078-21 991-150-20-1 360-100-121 310-24-090 610-12
106-2-211-25 Up to

24mm

 220-6-044-25 220-5-085-25 991-150-24-1 360-100-125 310-24-090 610-12
106-2-211-31 Up to

30mm

 220-6-050-31 220-5-085-25 991-150-24-1 360-100-125 310-24-090 610-12
Other sizes available
